Bosch PCS7A5B90, Gas hob
£739.00
Series 6, Gas hob, 75 cm, Stainless steel, PCS7A5B90
- FlameSelect: adjust the gas flame precisely using nine defined levels.
- Dual flame power burner with two heat options, quickly boil water or maintain a precise simmer.

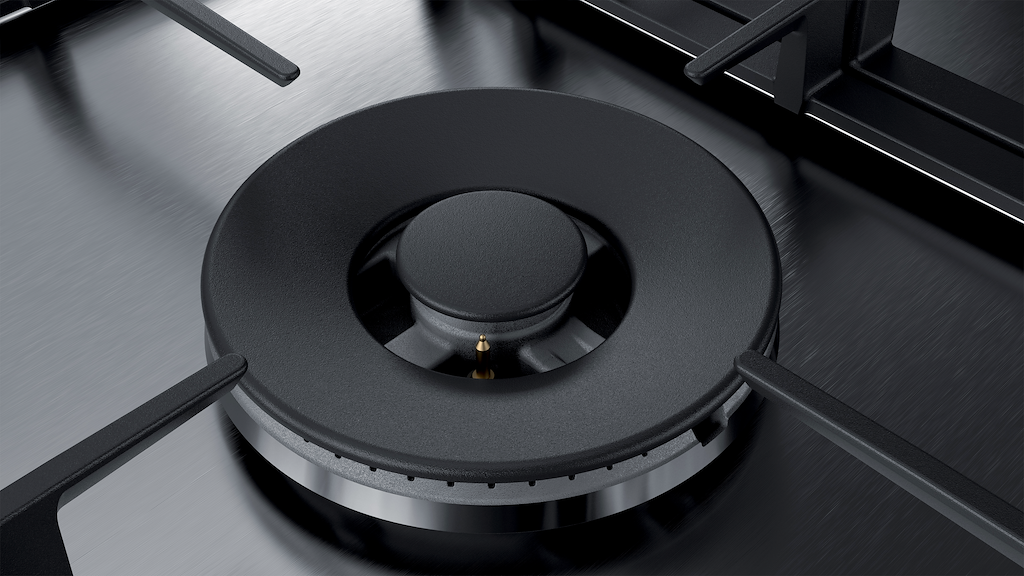

- Dual wok burner: dual flame system for very powerful cooking at up to 5 kW.
- Continuous cast-iron pan support: for high firmness and stability of cookware.
- Biomethane-ready: your gas hob can also be powered with renewable biomethane gas.
Design
- Stainless steel surface
- Cast iron pan supports
Usage convenience

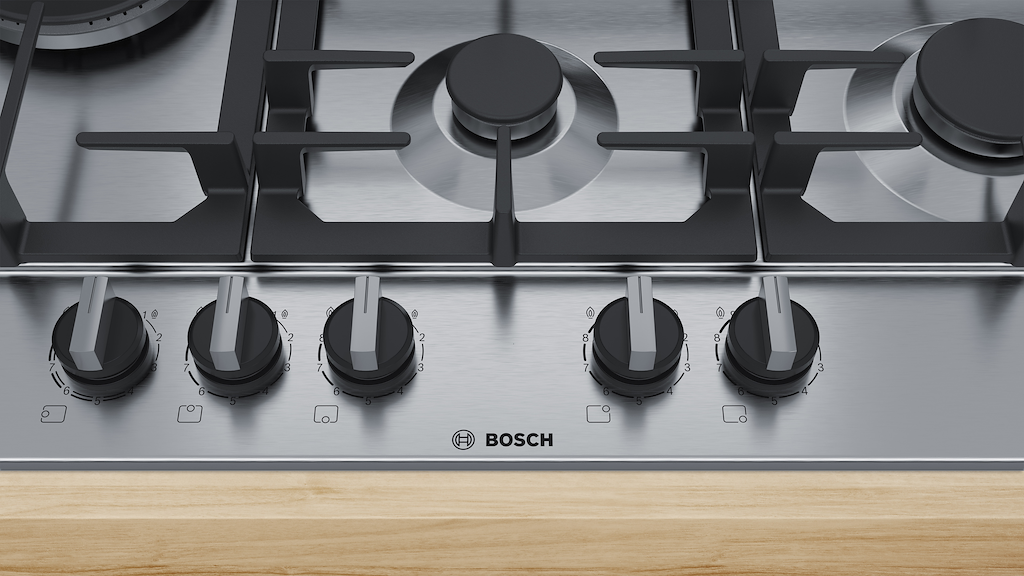

- FlameSelect: precisely control and adjust the flame in nine defined levels.
- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power
- 5 gas burners:
- Including 1 dual control wok burner: use an extra wide power range, separately controlling two flame rings.
- Left: wok burner up to 5 KW (depending on gas type)
- Center front: economy burner up to 1 KW (depending on gas type)
- Center rear: standard burner up to 1.75 KW (depending on gas type)
- Right rear: high-speed burner up to 3 KW (depending on gas type)
- Right front: standard burner up to 1.75 KW (depending on gas type)
Safety
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
- Usable for: Nat gas L/LL G25/20mbar(DE)
- NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 53 x 750 x 520
- Required niche size for installation (HxWxD mm) : 45 x 560 x (480 – 492)
- Min. worktop thickness: 30 mm
- Power cord: 1 m
- Connected load: 12.5 KW
| Member Product ID | AD02607 |
|---|---|
| EAN | 4242002837505 |
| Division Name | Cooking |
| Major Department Name | Hobs |
| Department Name | Gas Hobs |
| Colour Name | Stainless Steel |
| Features | Benefits | The stainless-steel gas hob with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels. |
| Country of Origin - Code | SPAIN |
| Brand Name | Bosch |
| Consumer Item - Width | 750 |
| Consumer Item - Width UOM | Millimetre |
| Consumer Item - Height | 45 |
| Consumer Item - Height UOM | Millimetre |
| Consumer Item - Depth | 520 |
| Consumer Item - Depth UOM | Millimetre |
| Consumer Item - Net Weight | 14.2 |
| Consumer Item - Net Weight UOM | Kilogram |
| Consumer Item - Gross Weight | 15.6 |
| Consumer Item - Gross Weight UOM | Kilogram |
| Product Group | Hob |
| Product Family | gas hob w integrated controls |
| Installation Type | Built-In |
| Appliance Voltage (V) | 220-240 |
| Hob Type | Gas |
| Type of Safety for Gas | Electromagnetic for each burner |
| Number of Burners | 5 |
| Automatic Programs | No |
| Type of Heating Element | Gas |
